Complete system · 5T Extreme Duty Load Bars
Bluetooth cattle scales 5T Extreme Duty Load Bars
40in unibody galvanized bars rated to 11,000 lb, built to live under the chute. For professional operations that weigh every animal, every time.
USD · Shipping calculated at checkout.
The bars capture the weight. The indicator sends it. The app records it. The cloud tracks the gain.
40in unibody galvanized load bars rated to 11,000 lb, built to live under the chute. Pre-calibrated for the AgriEID BT indicator and for TruTest and Gallagher indicators.
01 / Load bars
2 x 40in unibody hot-dip galvanized bars rated to 11,000 lb and IP66, made to bolt to the steel base under your chute.
02 / Bluetooth indicator
Detects the bars and calibrates itself. Auto-hold locks the weight of a restless animal and sends it to your phone.
03 / AgriEID Lite app
Free on Apple and Android. Save each weight against a visual or EID tag, with treatments and notes.
04 / AgriEID Cloud
12 months included. Weight gain and growth charts for every animal, or export each session as a CSV.
Also in the box: 2 x 16ft 4-wire PVC+PUR cables with a stainless steel spring cover (protected from sunlight, oil, cold, rolling and rodents), a 6V rechargeable battery and a AC adapter. The load bars only option is the two bars and their cables, for an indicator you already own. Phone, tablet and weighing platform not included (BYOD).
Full details and specifications →Four steps at the chute. No calibration, and the indicator streams every weight to your phone.

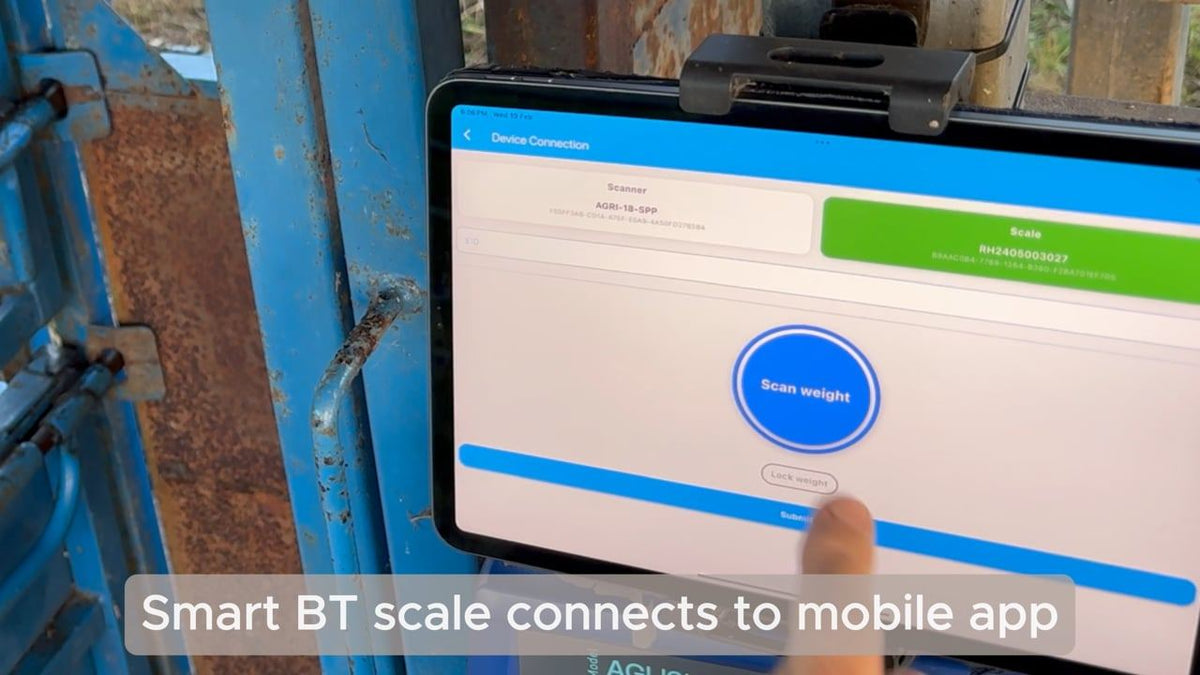

The Bluetooth indicator streams each weight reading straight to your own phone or tablet, free with the AgriEID Lite app. Record notes by voice, work with no reception, then upload to the cloud with one button.
Choose the right cattle scales for your corrals
Same indicator, same apps, same cloud software. The bars change with your corrals.
BT Ultra Load Bars
Aircraft-grade aluminium load cells in a powder-coated carbon steel, double-deck design. Bluetooth to your phone and a self-calibrating indicator. Built for under-cover corrals.
5T Extreme Duty Load Bars
For the biggest operations. 11,000 lb capacity with unibody galvanized construction. Fits under any cattle chute.
Showing: 40in Complete System
Add the BT Ultra Stick Reader to any of them and it becomes a Digital Ranch System package, for less than buying the two separately. Add the reader and save.
Built to live under the chute.
One-piece hot-dip galvanized chassis with a tubular sealed housing, IP66, and four aircraft-grade aluminium shear beam load cells rated to 11,000 lb. Bolt it to the steel base under the chute and leave it there.
11,000 lb capacity
Bulls, full chutes and heavy platforms.
40in unibody bars
Permanent under-crush mounting.
IP66 galvanized
Hot-dip galvanized carbon steel in a tubular sealed housing.
Aluminium shear beam load cells
Four aircraft-grade aluminium cells, 4,400 lb each, IP67. Weighs in 1 lb divisions.
Rodent-proof cables
16ft 4-wire PVC+PUR cable in a stainless steel spring cover, with quick-release connectors. Protected from sunlight, oil, cold, rolling and rodents.
2-year warranty
Bumper-to-bumper, support.
Works with the indicator you already have.
Pre-calibrated for TruTest, Gallagher and the AgriEID BT indicator.
Designed to be bolted to the steel base under your chute.
Weights land on your phone. Weight gain lands in the cloud.
Sell in the right weight band and the gear pays for itself in a season.
Producers weighing and drafting with AgriEID report a 10–15% lift in annual income from better sale timing, accurate dosing and earlier culling. On a 50-breeder operation that is $5,000–$12,000 a year.
Run the ROI calculatorCattle scales specifications
- Capacity
- 11,000 lb
- Dimensions
- 1100 × 80 × 4.1in (L × W × H)
- Net weight
- 88 lb
- Division
- 1 lb
- Material
- Carbon steel, hot-dip galvanized
- Structure
- Tubular sealed housing, IP66
- Load cells
- 4 × aircraft-grade aluminium shear beam, 4,400 lb each, IP67
- Cables
- 2 × 16ft 4-wire PVC+PUR cables with a stainless steel spring cover: protected from sunlight, oil, cold, rolling and rodents
- Indicator
- BT Bluetooth, auto-detect, self-calibrating
- Power
- 6V rechargeable battery or AC adapter
- Operating temperature
- 14 to 104°F
- Warranty
- 2 years bumper-to-bumper
In the box
2 × Extreme 40in unibody galvanized load bars · BT auto-detect indicator · 6V rechargeable battery and AC adapter · 2 × 16ft rodent-proof cables.
Questions before you order
The bars are 43in long overall and are made to be bolted to the steel base under your chute. They also plug into TruTest and Gallagher indicators without calibration.
No. Pre-calibrated, and the BT indicator auto-detects them. They are calibrated before shipping, so only recalibrate if the readings drift, and contact support first.
In stock and ships in 5–7 business days. Enter your ZIP code at checkout for subsidized shipping.
AgriEID Lite is free. After the free 12 months the cloud platform starts at US$9.95 a month for up to 100 animals, billed monthly with every module included. Change or cancel at any time and export all your records to CSV. The scales work without a subscription. See pricing.
2-year bumper-to-bumper warranty, backed by support.
Customer reviews
What ranchers say about AgriEID
Reviews from producers weighing and tagging with AgriEID gear.
5T Extreme Duty Load Bars · $1,995
1000mm Complete System
